Holz-Her Edgebander Massiv Sprint 1327
The HOLZ-HER Edgebander SPRINT 1327 doors are renowned for their precision and reliability in woodworking and edgebanding operations. This advanced machine is designed to meet the high demands of modern woodworking shops by providing superior performance, efficiency, and quality. Whether you are working on kitchen cabinets, office furniture, or bespoke carpentry projects, the SPRINT 1327 doors have several innovative features that make it a valuable asset.
- Crafted with precision
Product Features
IntelliSet

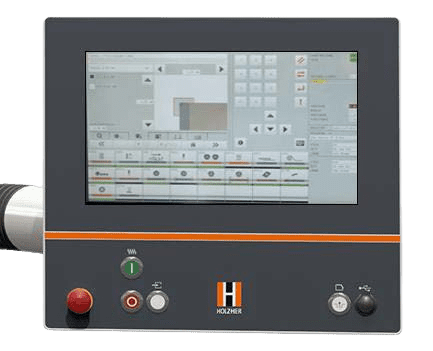

The intelligent tool correction allows intuitive adjustment of all milling and scraper operations. The operator can see graphically at any time which corrections are being made in which direction. The values entered at the control for horizontal and vertical tool infeed are automatically converted to the actual axis values in the background. Test workpieces are thus a thing of the past.
- Crafted with precision
Product Features
fa.s.t.
Fast setting technology makes it possible for edgebanders to perform various operations simultaneously. Units can be switched on intelligently without having to empty the machine before running a set-up process, making it possible to fully utilize the entire capacity. The locking roller at the machine infeed controls the setup gap dynamically.
- Crafted with precision
Product Features

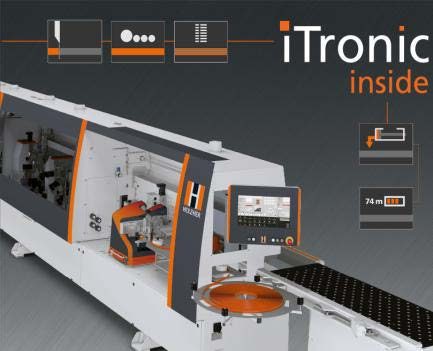

iTronic - pressure and glue quantity control
Automatic, program controlled fine adjustment for optimum adjustment to edge thickness, edge materials and glue types which guarantee best process results
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
The Glu Jet system provides an almost invisible glue joint, which can be perfectly adjusted to the workpiece thickness. This ensures highquality, seamless joints even with solid wood.
This feeder holds glue sticks up to 150 mm and feeds them to the machine at a narrow 7-degree angle, ensuring a short open glue path and a strong, firm bond.

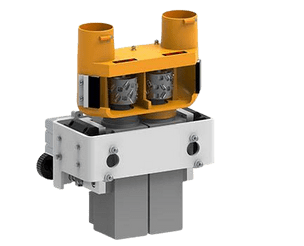

The machine is equipped with up to two flush milling units and a cross-cut unit, allowing it to process even the hardest woods efficiently.
Powerful drive motor for shock-free transport of workpieces by workpiece chain.
Technical Specifications
| Technical Specifications | Metric |
|---|---|
|
Motor |
400 V / 50 Hz, 2.2 kW |
|
Edging thickness coiled edging |
0,4 – 3 mm |
|
Edging thickness of cut-length edging |
max. 15 mm |
|
Edge height
|
max. 65 mm |
|
Workpiece thickness |
8 – 60 mm |
|
Workpiece width
|
min. 65 mm |
|
Workpiece length |
min. 160 mm |
|
Feed speed |
variable 10 – 18 m/min |
