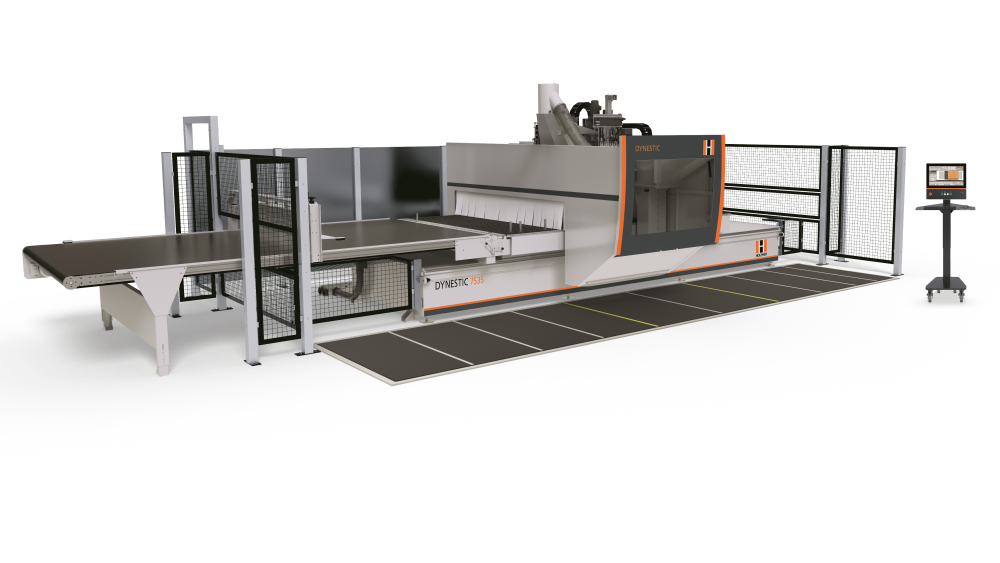

DYNESTIC 7535
Quick Nesting · Drilling · Grooving · Milling
The HOLZ-HER DYNESTIC Series delivers highly automated nesting CNC machining for efficient panel processing, combining cutting, drilling, and grooving in one step. With advanced software integration and powerful 5-axis options like the DYNESTIC 7535, it ensures precision, reduced handling, and optimized production performance across multiple applications.
- Crafted with precision
Product Features
Design

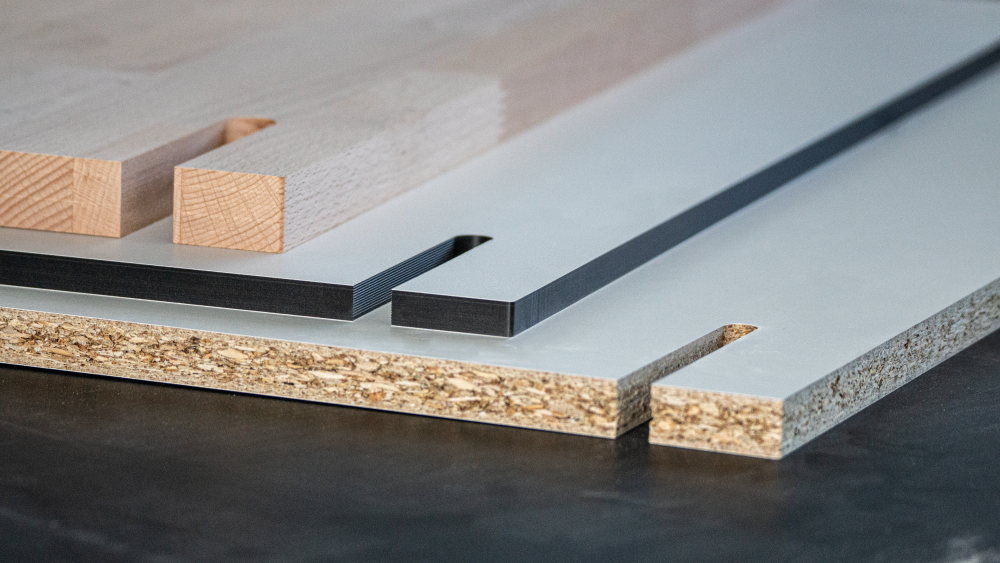

Integrated nesting technology enables cutting, drilling, and grooving in a single operation, reducing handling and improving efficiency.
- Crafted with precision
Product Features
Design
Capable of processing lengths over 6 meters, with a liquid-cooled 5-axis spindle delivering 10 kW power and speeds from 1,000–24,000 rpm, plus optional higher-performance spindles.
- Crafted with precision
Product Features
Design
Flagship 5-axis CNC design featuring a 2,200 mm deep grid table and solid gantry construction with dual synchro drives for maximum precision and optimal cutting results.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
Whether as a DYNESTIC 7535 classic, push, automatic or lift – this 5-axis CNC machine sets standards!
5-axis machining, integrated processes, and gantry design deliver precision on large panels over 6 meters.
Robust gantry construction and wear-resistant vacuum table ensure durability and consistent long-term performance.
Integrated CAMPUS software and optional BetterNest enable efficient nesting, control, and seamless production workflows.
Intuitive graphical interface and controls simplify operation, reducing training time and improving productivity.
Ideal for furniture, cabinetry, stairs, and frame constructions, including rectangular and complex free-form designs.
Optional 12 kW or 17 kW spindles, BetterNest software, 16-field grid table, and vacuum control.
Technical Specifications
Scroll horizontally to view all specifications.
| Technical Specifications |
DYNESTIC 7535 Classic 10.5 | 12.5 | 20.5 12.7 | 15.7 | 20.7 |
DYNESTIC 7535 Push 10.5 | 12.5 | 20.5 12.7 | 15.7 | 20.7 |
Options |
|---|---|---|---|
| Machining dimensions 5′ in X-direction | 3100 / 3700 / 6250 mm | 3100 / 3700 / 6250 mm | |
| Machining dimensions 5′ in Y-direction | 1600 mm | 1600 mm | |
| Machining dimensions 7′ in X-direction | 3700 / 4600 / 6250 mm | 3700 / 4600 / 6250 mm | |
| Machining dimensions 7′ in Y-direction | 2200 mm | 2200 mm | |
| Vector speed | 128 m/min | 128 m/min | |
| 5-axis cutter unit | 13 kW, liquid-cooled 1000 – 24,000 rpm |
13 kW, liquid-cooled 1000 – 24,000 rpm |
18 kW, liquid-cooled 1000 – 24,000 rpm |
| Drilling head L | 16 spindles (10 V | 6 H), including sawing unit in X-direction | 16 spindles (10 V | 6 H), including sawing unit in X-direction | |
| Drilling head XL | 24 spindles (18 V | 6 H), including sawing unit in X-direction | ||
| Automation | Not possible | Automatic discharge pusher with integrated vacuum Discharge table with conveyor | |
| Workpiece support | 5′ model: 8/16-field vacuum, software controlled 7′ model: 16/32-field vacuum, software controlled | 5′ model: 8/16-field vacuum, software controlled 7′ model: 16/32-field vacuum, software controlled | |
| Safety equipment | Light grid 3-field foot mat | Light grid 3-field foot mat | |
| Workpiece clamping | 5′ model: 250 m³/h low-maintenance, dry-running vacuum pump 7′ model: 500 m³/h low-maintenance, dry-running vacuum pump | 5′ model: 250 m³/h low-maintenance, dry-running vacuum pump 7′ model: 500 m³/h low-maintenance, dry-running vacuum pump | Additional vacuum pumps |
| Tool changer | 14-position pick-up tool changer integrated into the machine frame | 14-position pick-up tool changer integrated into the machine frame | Second 14-position pick-up tool changer 18-position travelling disc tool changer in place of pick-up Saw blade changer, travelling, with tool cover |
| Software | CAMPUS software | CAMPUS software |
Technical data is provided for reference and may be subject to changes in design and equipment.
