DYNESTIC 7507
Quick Nesting · Drilling · Grooving · Milling

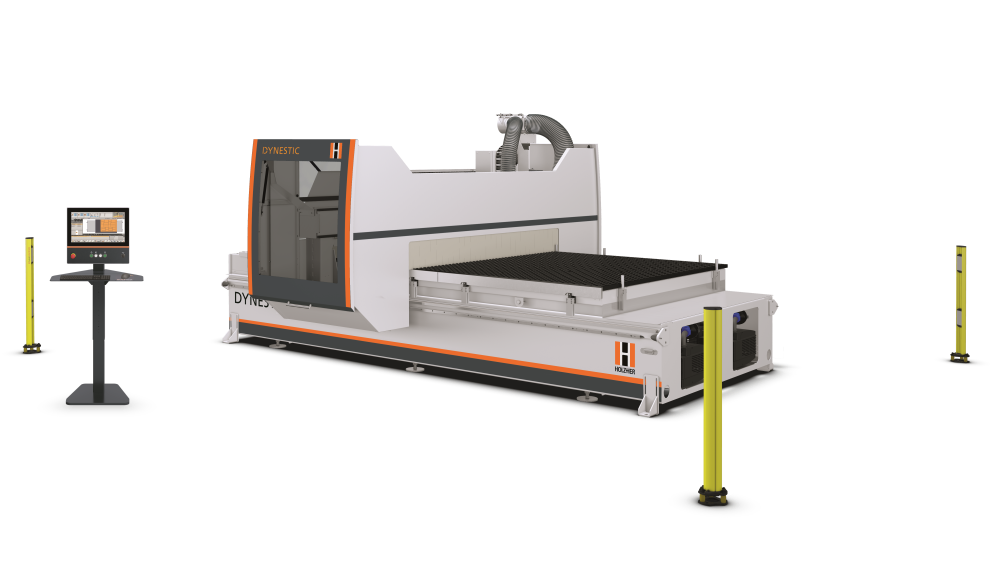

The HOLZ-HER DYNESTIC 7507 is a high-efficiency nesting CNC machining centre designed for modern panel production. Combining intelligent automation, precise drilling capabilities, and flexible machining options, it streamlines manufacturing processes while delivering accurate, repeatable results across a wide range of applications.
- Crafted with precision
Product Features
Design
Designed for efficient nested-based manufacturing, the DYNESTIC 7507 accurately cuts, drills, and grooves sheet materials while reducing production steps and manual intervention.
- Crafted with precision
Product Features
Efficiency
Equipped with a ceramic-bearing high-performance spindle, integrated grooving saw, and drilling head with up to 24 spindles, the machine delivers fast and reliable machining performance.
- Crafted with precision
Product Features
Configuration
Flexible Classic and Push machine configurations offer scalable automation, including automated unloading, conveyor systems, and vacuum-assisted material handling.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
Optimised gantry delivers fast, accurate machining up to 4,600 mm × 2,200 mm
Rigid frame and protected precision guides backed by a 10-year HOLZ-HER guarantee.
CAMPUS software streamlines nesting, barcode processing, and production management..
Easy to learn and operate with rapid routing, drilling, and grooving.
Ideal for cabinetry, furniture, shopfitting, and other panel processing applications.
Available with tool changers, conveyors, vacuum systems, and automated unloading.
Technical Specifications
Scroll horizontally to view all specifications.
| Technical Specifications | DYNESTIC 7507 10.7 / 15.7 Classic |
DYNESTIC 7507 10.7 / 15.7 Push |
Options |
|---|---|---|---|
| Machining dimensions in X direction | 3100 / 4600 mm | 3100 / 4600 mm | |
| Machining dimensions in Y direction | 2200 mm | 2200 mm | |
| Vector speed | 110 m/min | 110 m/min | |
| Cutter unit | 8 kW, air-cooled, 1000 – 24,000 rpm |
8 kW, air-cooled, 1000 – 24,000 rpm |
12 kW, air-cooled, 1000 – 24,000 rpm 10 kW, liquid-cooled, 1000 – 24,000 rpm |
| Drilling head L | 14 spindles (10 V | 4 H), including sawing unit in X-direction | 14 spindles (10 V | 4 H), including sawing unit in X-direction | Drilling head XL: 24 spindles (18 V | 6 H), including sawing unit in X-direction Double drilling spindle in Y-direction Vertical drilling spindle with double positioning force |
| Drilling head XL | Double drilling spindle in Y-direction Vertical drilling spindle with double positioning force | ||
| Automation | Not possible | Automatic discharge pusher with integrated evacuation Discharge table | Discharge table with conveyor belt |
| Workpiece support | High-flow nesting table with continuous vacuum field** | High-flow nesting table with continuous vacuum field** | ** 16-field vacuum, software controlled |
| Safety equipment | Light grid | Light grid | |
| Workpiece clamping | 2 x 140 m³/h vacuum pump, low-maintenance dry-running version | 2 x 140 m³/h vacuum pump, low-maintenance dry-running version | Additional vacuum pump 140 m³/h vacuum pump 250 m³/h vacuum pump |
| Tool changer | 6-position pick-up tool changer in the machine frame | 6-position pick-up tool changer in the machine frame | Upgradeable to 12 tool change positions, maximum 3 x 2 items 1-position X/Y pick-up tool changer with tool cover |
| Software | CAMPUS software machine licence including aCADemy CAD/CAM module and CabinetControl Base | CAMPUS software machine licence including aCADemy CAD/CAM module and CabinetControl Base | CAMPUS software office licence BetterNest rectangular nesting BetterNest free-form nesting |
Technical data is provided for reference and may be subject to modification without prior notice.
